Contactless Data Transmission and Power Supply
13.56 MHz operating frequency 106 kbit/s data transmission
16-bit CRC, parity check, bit encoding, and bit counting for data integrity
Operating range up to 100 mm
Triggers automatic NFC counter during read commands; NFC counter ASCII mirror
Used to automatically add the NFC counter value to the NDEF message

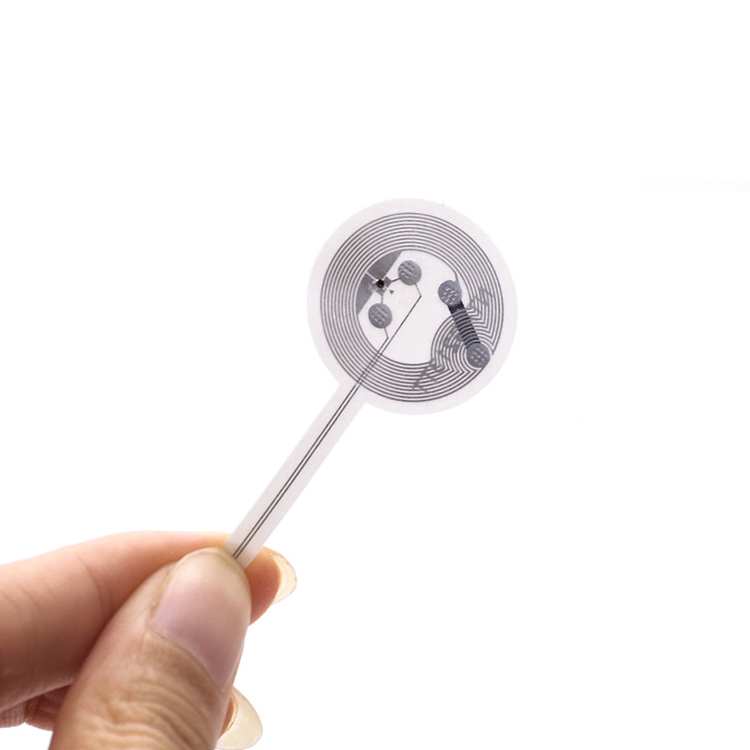

Tag Tamper Detection: Checks whether the tag tamper line is active after initialization
If a tamper event is detected
The tag tamper message (ASCII mirror) copies a custom tag tamper message into the NDEF message
ECC-based digital signature, offering the possibility of customization and permanent locking
Description
Compared to the NTAG 213, the NTAG 213TT offers expanded functionality, providing additional benefits for smart packaging and brand protection. The NTAG 213TT features a new tag tampering function designed to detect the status of the tag’s tamper-detection wire during the initialization process. If an open circuit is detected in the wire, the NTAG 213TT will permanently store this event. The status information of the tag tamper wire can be mirrored in ASCII format to the user memory containing NDEF data, or it can be read via a dedicated command. Furthermore, the NTAG 213TT provides an improved authenticity signature that can be programmed and locked during tag initialization. The NTAG 213TT is fully compliant with the NFC Forum Type 2 Tag (Ref. 2) and ISO/IEC 14443 Type A (Ref. 1) specifications.
Features
Anti-Collision
The intelligent anti-collision feature allows multiple tags to operate simultaneously in the field. The anti-collision algorithm selects each tag individually. It ensures that transactions with the selected tag are executed correctly without interference from other tags in the field.
EEPROM
184 bytes organized into 46 pages, 4 bytes per page
144-byte free user read/write area (36 pages) with a 4-byte initialization capacity container featuring one-time programmable access bits
Field-programmable read-only lock function for the first 16 pages
In-field programmable read-only lock functionality for every pair of pages beyond the first 16 pages
Configurable password protection with optional limit on failed attempts
Anti-tamper support for Capacity Container (CC) and lock bits
Pre-programmed ECC-based original signature providing the possibility of customization and permanent locking
Tag tamper messages
Data retention time of 10 years
Write endurance of 100,000 cycles
NFC Forum Tag Type 2 Compliance
The NTAG213TTIC is fully compliant with the NFC Forum Tag Type 2 technical specifications and supports the NDEF data structure configuration.
Security
The manufacturer assigns a 7-byte UID to each device
Pre-programmed Capability Container with one-time programmable bits
Field-programmable read-only locking functionality
Pre-programmed ECC-based original signature providing the possibility of customization and permanent locking
32-bit password protection to prevent unauthorized memory operations
Customer-programmed tag tamper messages are masked: tampering events are detected only after initialization
Application
1. Anti-counterfeiting for tobacco, alcohol, and tea packaging
2. Anti-counterfeiting for tea
3. Anti-counterfeiting for cosmetics, footwear, and handbags, etc.
