Frequency: High Frequency 13.56 MHz
Protocol: ISO 14443A
Read/Write Range: 2–60 mm (when used with a reader of appropriate power) / Customizable

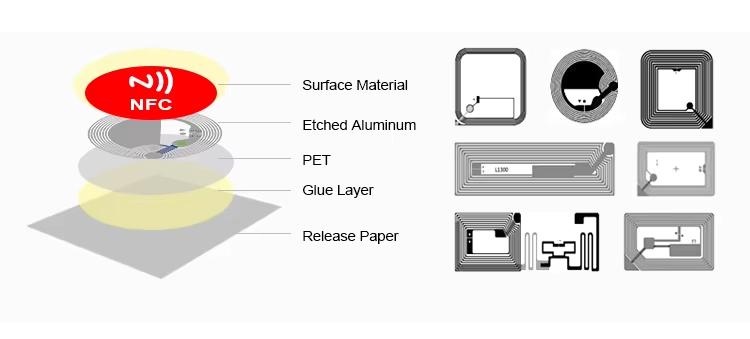

Packaging Materials: Release paper + adhesive label + etched aluminum + PET substrate + coated paper
Packaging Process: Flip-chip bonding + lamination (NiuBao flip-chip bonding + MiaoSha lamination)
Applications: Anti-counterfeiting and traceability / Data transmission / Wi-Fi security devices
Description

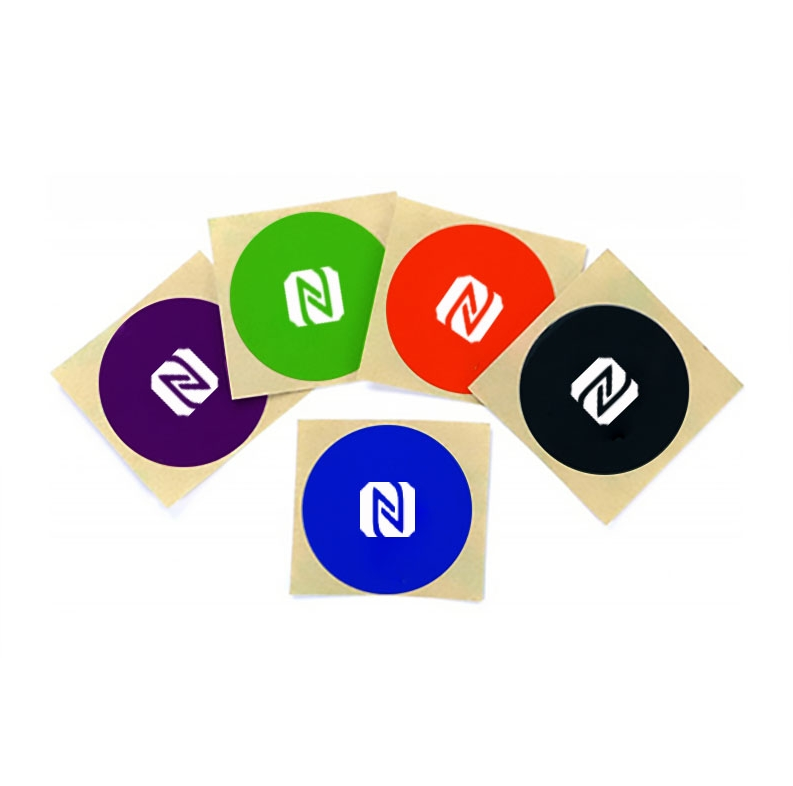

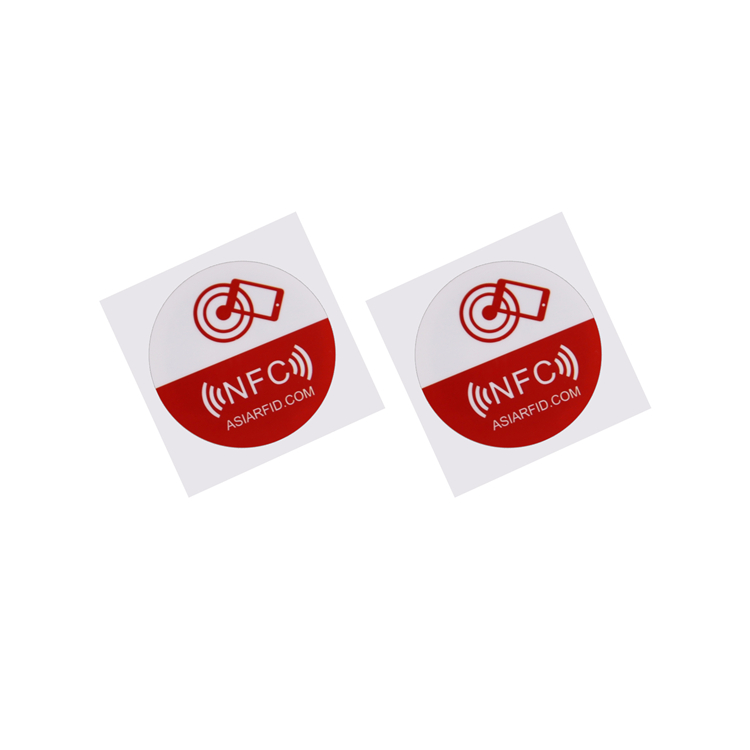

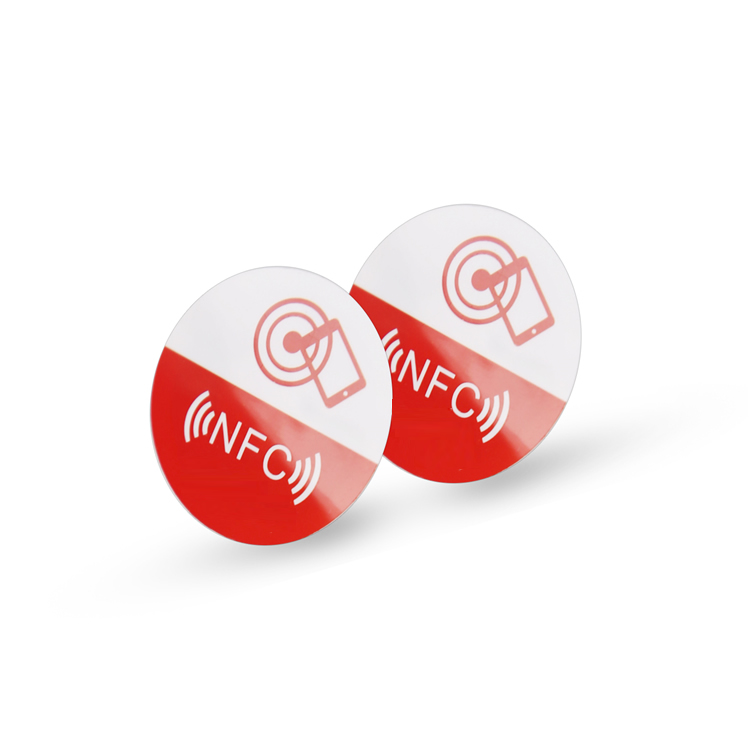

NFC Stickers are identification tags based on Near Field Communication (NFC) technology, designed for close-range identification and interaction between devices. Widely used in various fields such as payments, transportation, logistics, and identity verification, they offer features such as ease of use and high security. The use of NFC tags significantly simplifies operational processes and improves efficiency.
Features
Quality Assurance
We utilize German MOSA composite equipment, which significantly outperforms domestic systems in terms of vision systems, dispensing systems, die-picking systems, and hot-press curing systems. This ensures more stable operations during unloading, feeding, dispensing, flipping, die-picking, hot-press curing, inspection, marking, and collection, resulting in superior label quality.
Reliable Bonding
We use German-imported anisotropic conductive adhesive (ACA), which ensures a single conductive direction perpendicular to the Z-axis. This adhesive far surpasses standard conductive adhesives in terms of conductive particle performance, bonding strength, and reliability, resulting in a more stable and reliable connection between the antenna and the chip.
High Sensitivity
The built-in inlay antenna utilizes pre-exposure, development, and etching technology. The width of the aluminum etched lines can be controlled within ±0.03 mm, with the finest lines reaching 0.075 mm. The antenna lines are smooth, with minimal tolerances in line spacing and width, resulting in a more precise resonance frequency and faster, more stable read/write performance.
Free Design & Self-Printing
Artwork can be printed on coated paper with a custom logo as requested. We offer free layout design for 2D codes, and you can customize label dimensions, chip models, memory codes, barcode numbers, and more.
Peel-and-stick, Strong Adhesion, Flexible Application
Features strong adhesion and moderate abrasion resistance, with a wide range of applications and time-saving benefits. Labels can be applied directly to object surfaces or repositioned inside sealed label casings based on specific application environments.
Application
1. Logistics. Cargo tracking, automatic data collection, warehousing, port operations, express delivery, etc.
2. Retail. Real-time sales data tracking, restocking, anti-theft measures, unmanned supermarkets, etc.
3. Manufacturing. Real-time production data monitoring, quality tracking, automated production, etc.
4. Medical device management, patient identification, infant anti-theft measures, etc.
5. Electronic passports, ID cards, student IDs, and other electronic credentials, access control systems, etc.
