RFID Protocol: EPC Class 1 Gen 2, 1s018000-6C
Frequency: US Standard (902–928 MHz), European Standard (865–868 MHz)
Chip: MR6P
Storage: EPC 128 bits, TID 96 bits
Write Cycles: 100,000
Function: Read/Write; Data Retention: 50 years
Application Surface: Metal surfaces
Reading Range: 3 meters (depends on the reader)
Warranty Period: 1 year
Physical Parameters:
Dimensions: Diameter 24.2 mm
Thickness: 8.5 mm
Material: Stainless Steel + PEEK Mounting Method: Screw
Weight: 15.5 g
Application Areas: High-value components, critical machinery identification, oil and gas
Description

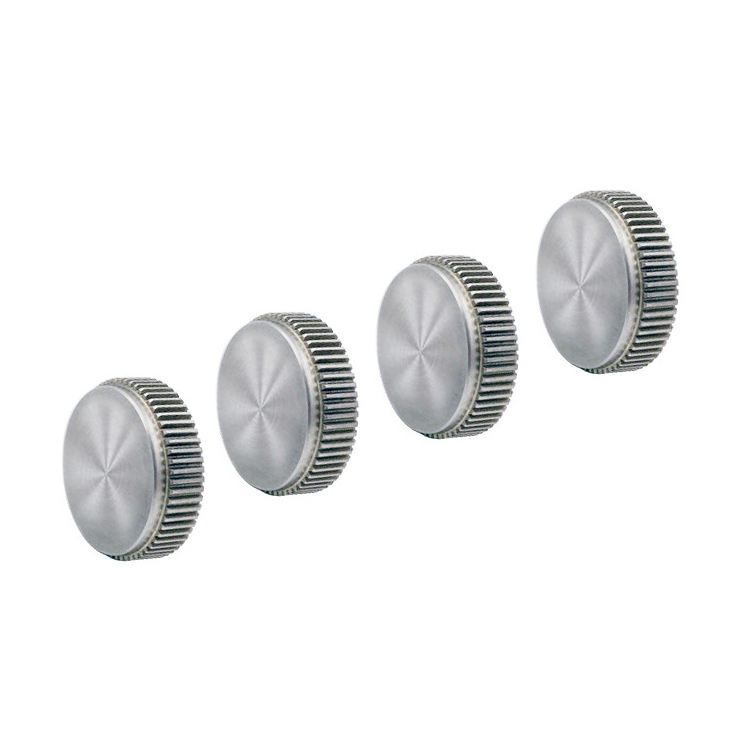

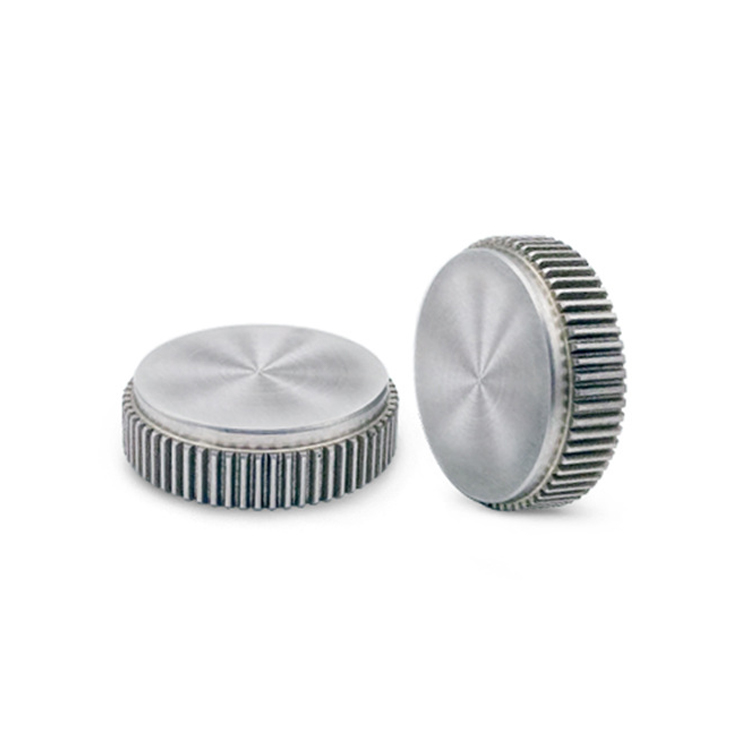

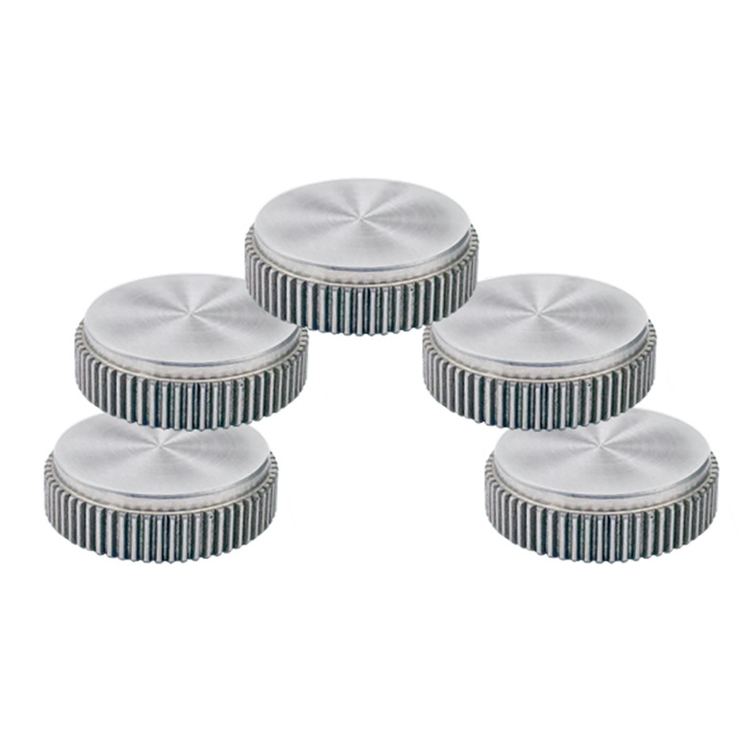

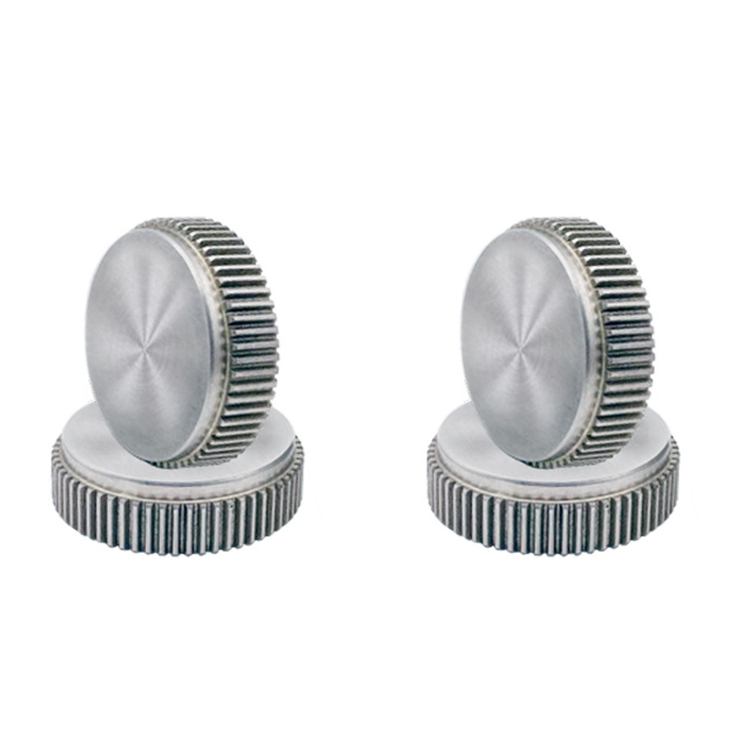

High-temperature-resistant RFID Tags for oil drilling pipes feature a PEEK surface coating that is heat-resistant, abrasion-resistant, and resistant to acids and alkalis, with a 304 stainless steel housing. They are designed to withstand the harsh downhole environments of oil drilling pipes. The surface of the RFID Tags can be machined with notches, threads, and other features, ensuring they remain securely in place when installed in the grooves of the drilling pipe.
Features
Durability Testing
In practical use, this tag demonstrates resistance to drilling fluids and hydraulic fluids, including hydrogen sulfide. It is a specialized RFID Tag that has passed high-temperature and high-pressure stress resistance tests.
Stable Performance
Read/write testing has been conducted under extreme conditions of pressure, vibration, temperature, and chemical exposure.
Long Service Life and Reading Stability
With a write/erase cycle life of up to 100,000 times and a data retention period of up to 10 years, the tag ensures stability and reliability.
Application
Valuable Components | Critical Machinery Identification | Oil and Gas
