Operating Frequency: UHF 915 MHz / 13.56 MHz
Communication Protocols: UHF ISO 18000-6C / HF ISO 1443A, ISO 15693
Reading/Writing Range: 3 m (when used with a reader of appropriate power)
Encapsulation Material: ABS+ / Custom, etc.
Encapsulation Process: Ultrasonic encapsulation + Inlay flip-chip, Miosha lamination
Applications: Container logistics, asset management, warehouse management, etc.
Description

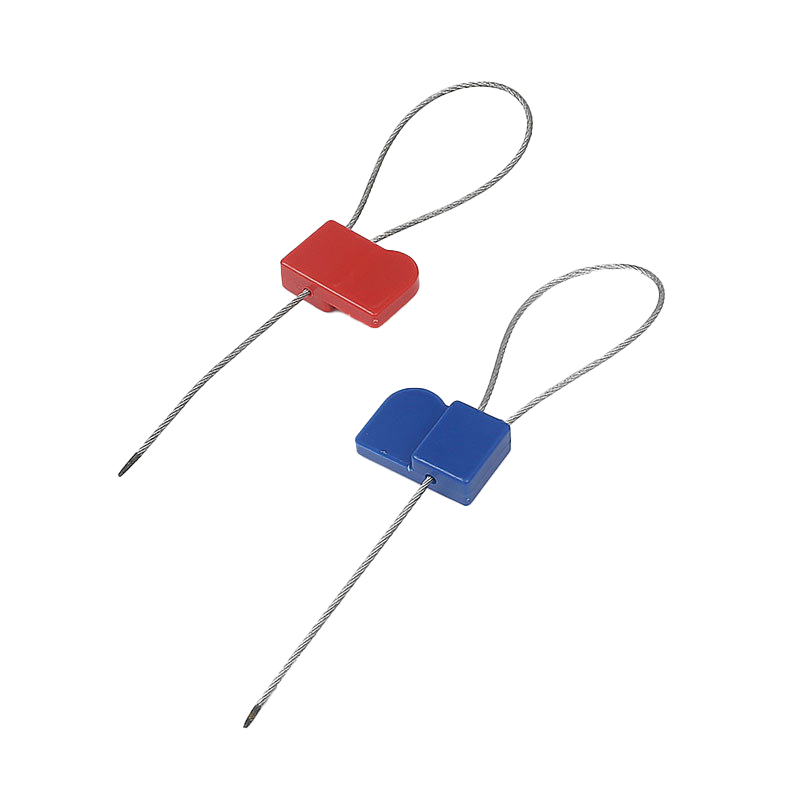

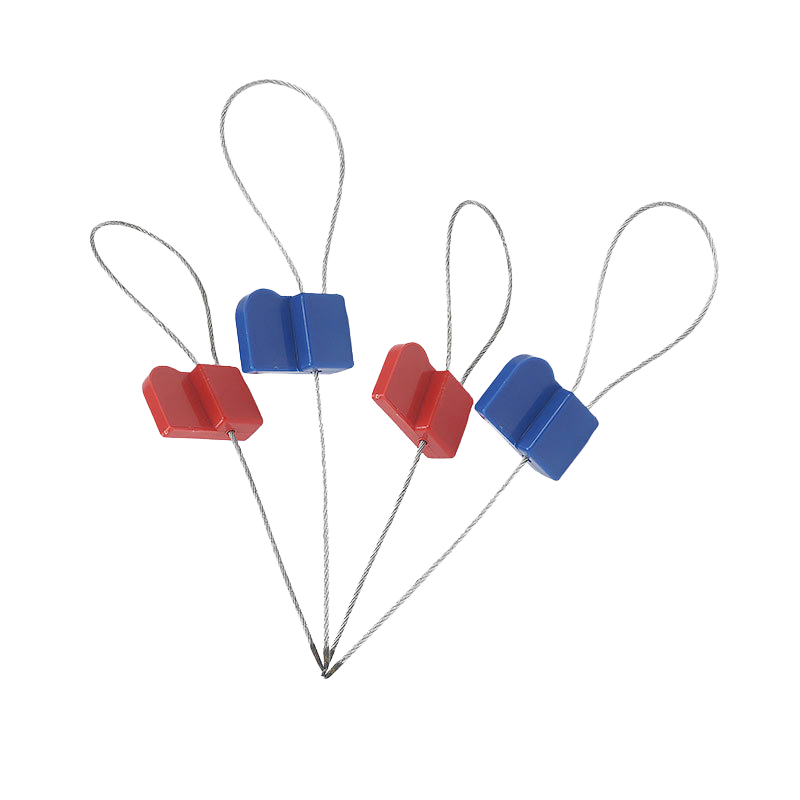

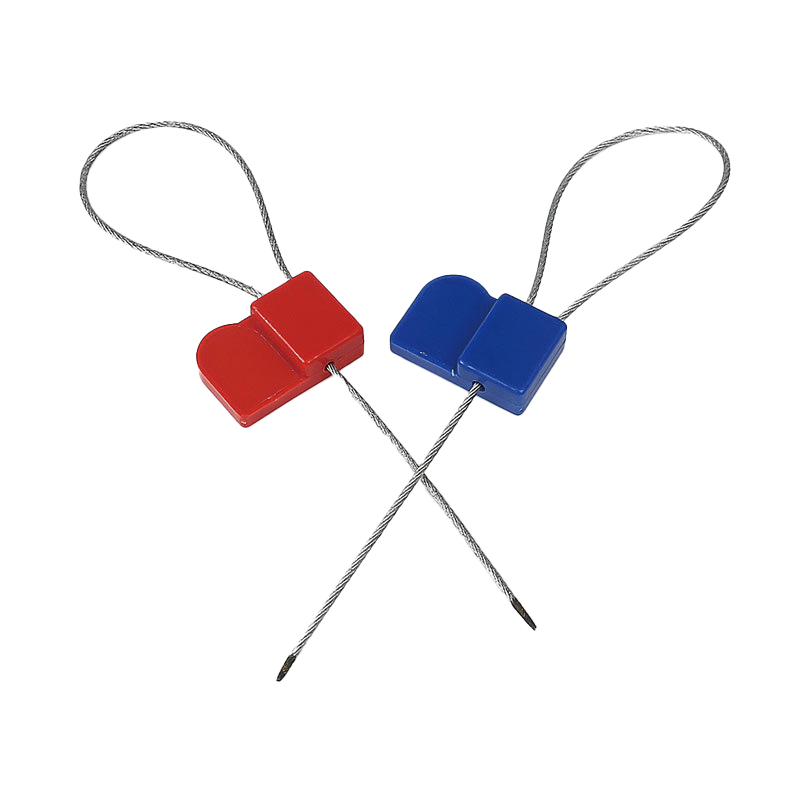

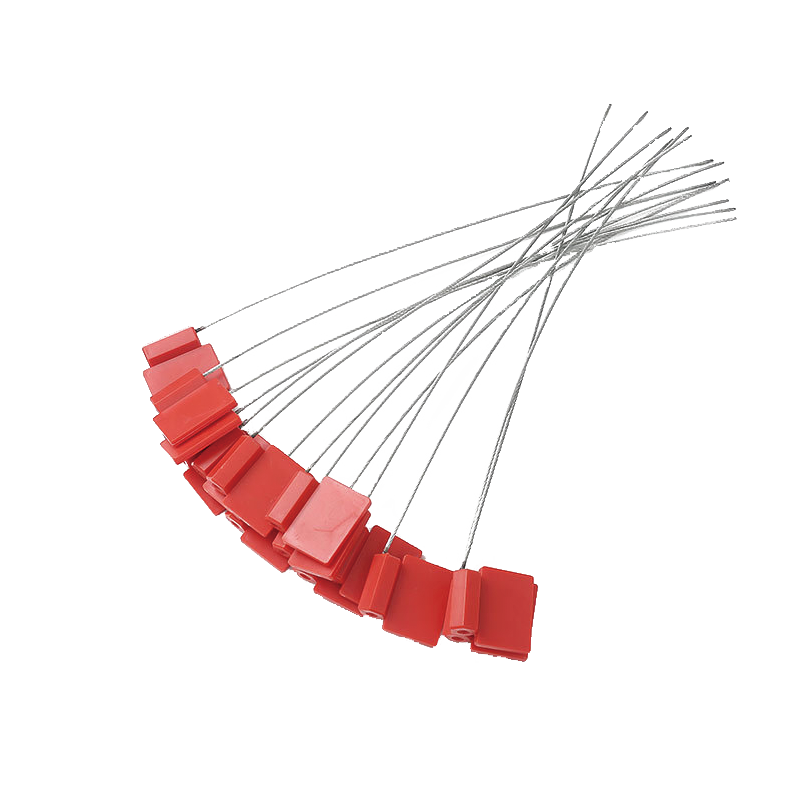

The RFID seal tag is constructed from an eco-friendly ABS plastic housing combined with stainless steel wire. This electronic seal is a single-use product that is simple and convenient to use. It is applied for anti-counterfeiting and security purposes in industries such as logistics, warehousing, management of valuables and hazardous materials, network cabling, finance, department stores, power, petrochemicals, shipping, and horticulture.
Features
● Galvanized Steel Wire Made from Aerospace-Grade Carbon Steel
The steel wire is manufactured from cold-drawn aerospace-grade carbon steel, making the wire seal UV-resistant, oxidation-resistant, and capable of withstanding high tensile forces. The tag features a press-fit locking mechanism for easy installation; removal requires tools such as wire cutters.
● High Sensitivity
Faster and more stable data read/write performance. The built-in inlay antenna utilizes pre-exposure, development, and etching technology, with aluminum etched line widths controlled within ±0.03mm and the finest lines reaching 0.075mm. The antenna’s smooth lines feature minimal tolerance between line spacing and width, resulting in more precise resonance frequencies and faster, more stable data read/write operations.
● Adaptable to Complex Environments
Features built-in metal locking teeth and a robust construction, making it suitable for various challenging scenarios (low temperatures, high temperatures, tear resistance, and use around objects with extensive markings).
● Water- and Dust-Resistant
Highly sealed to withstand diverse environments. Utilizes ultrasonic sealing for superior protection, enabling use in humid and sandy conditions. When necessary, it achieves an IP68 waterproof rating, allowing for long-term use in harsher environments.
● Easy Installation
The “pull-to-lock” design allows for manual sealing. Simply pull gently to secure the tie, and the reliable structure features tamper-proof functionality.
● Wide Range of Applications
RFID cable tie tags for item traceability and anti-counterfeiting are widely used in airline baggage tracking, food logistics, asset management, container sealing, express parcels, logistics management, and power cable classification.
Application
1. Freight logistics management and parcel circulation management.
2. Warehouse management and inventory tracking.
3. Airline baggage tracking.
4. Container sealing.
5. Asset management on metal surfaces with limited installation space, etc.
