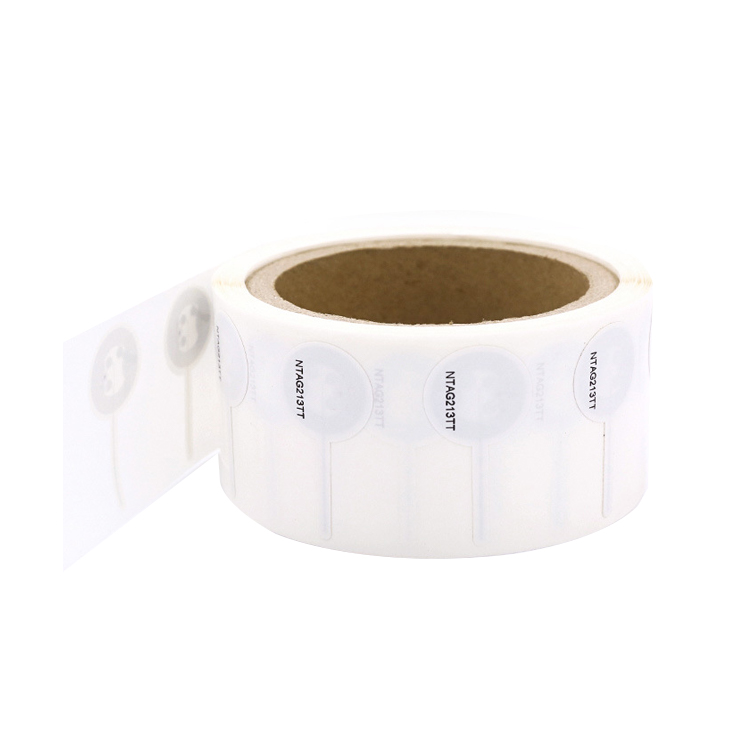

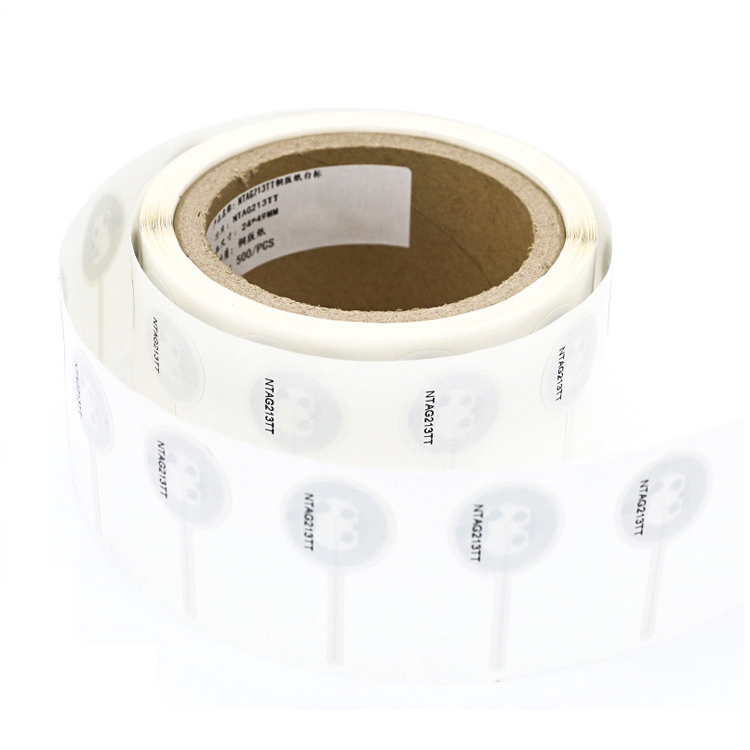

Custom RFID Tamper Evident NFC Label with NTAG213 Chip Anti-Counterfeit Security Sticker

Description

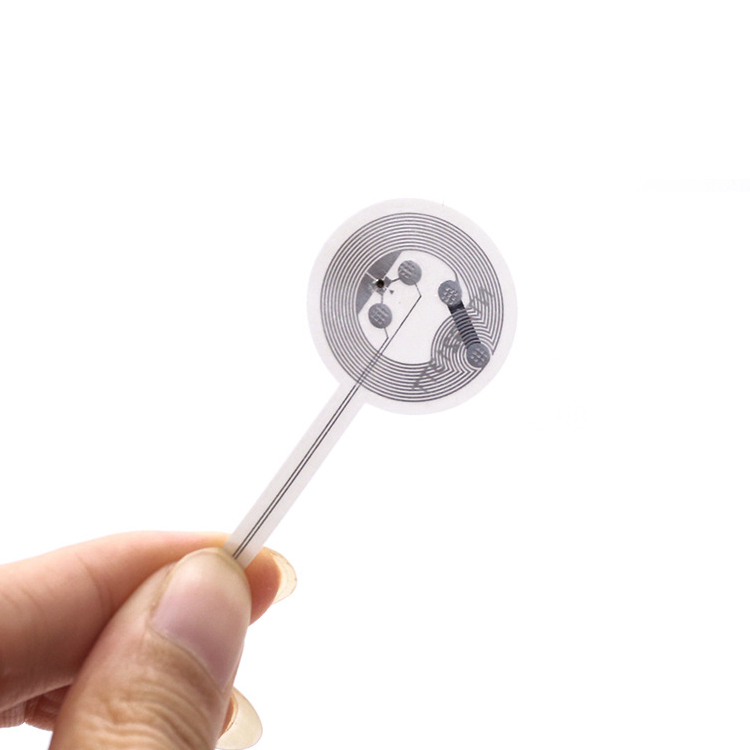

Compared to the NTAG 213, the NTAG 213TT offers expanded functionality, providing additional benefits for smart packaging and brand protection. The NTAG 213TT’s new tag tampering feature is designed to detect the status of the tag’s tamper-detection wire during the initialization process. If an open circuit is detected in the wire, the NTAG 213TT will permanently store this event. The status information of the tag tamper wire can be mirrored in ASCII format to the user memory containing NDEF data, or it can be read via a dedicated command. Furthermore, the NTAG 213TT provides an improved authenticity signature that can be programmed and locked during tag initialization. The NTAG 213TT is fully compliant with the NFC Forum Type 2 Tag (Ref. 2) and ISO/IEC 14443 Type A (Ref. 1) specifications.

Features

Anti-Collision

The intelligent anti-collision feature allows multiple tags to operate simultaneously in the field. The anti-collision algorithm selects each tag individually. It ensures that transactions with the selected tag are executed correctly without interference from other tags in the field.

EEPROM

• 184 bytes organized into 46 pages, 4 bytes per page>
• 144-byte free user read/write area (36 pages) with a 4-byte initialization capacity container featuring one-time programmable access bits
• Field-programmable read-only lock function for the first 16 pages
• Field-programmable read-only lock functionality for every pair of pages beyond the first 16 pages
• Configurable password protection with optional limit on failed attempts
• Anti-tamper support for Capacity Container (CC) and lock bits
• Pre-programmed ECC-based original signature provides the possibility of customization and permanent locking
• Tag tamper messages
• Data retention time of 10 years
• Write endurance of 100,000 cycles

NFC Forum Tag Type 2 Compliance

The NTAG213TTIC is fully compliant with the NFC Forum Tag Type 2 technical specifications and supports the NDEF data structure configuration.

Security

The manufacturer programs a 7-byte UID for each device

Pre-programmed Capacity Container with one-time programmable bits

Field-programmable read-only locking functionality

Pre-programmed ECC-based unique signature enabling customization and permanent locking

32-bit password protection to prevent unauthorized memory operations

Customer-programmed tag tamper messages are masked until a tampering event is detected after activation

Application

1. Anti-counterfeiting for tobacco, alcohol, and tea product packaging

2. Anti-counterfeiting for tea products

3. Anti-counterfeiting for cosmetics, footwear, handbags, and other products
