Chip Model: U8 (Other chips available upon request)
Operating Frequency: 860–960 MHz
Communication Protocol: ISO 18000-6C
Dimensions: 50 × 35 mm
Product Color: Black (other colors available upon request)

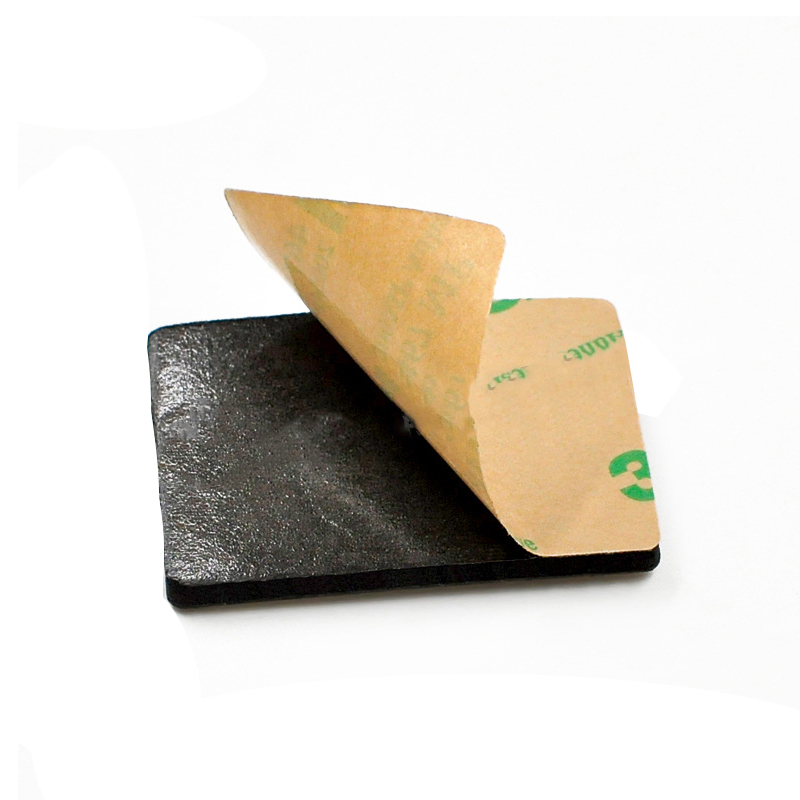

Additional Features: Adhesive backing, laser printing, logo, encoded information
Material: PVC + Epoxy Resin + Soft Rubber
Power Supply: Passive
Read/Write Range: 0–12 cm (compatible with readers)
Applications: Security patrols, petrochemical facilities, rail transit facilities, mobile communication facilities, security inspection facilities, power asset and equipment management, etc.
Description
This tag is primarily designed using anti-metal technology, featuring an RFID chip capable of storing data, identification information, and updates. The tag is anti-metal, bend-resistant, low-temperature resistant, waterproof, and tamper-proof. It can be secured via direct adhesion. The encapsulated tag is made of epoxy resin combined with signal-absorbing materials, technically resolving the challenges of using electronic tags on metal surfaces. The material is waterproof, acid-resistant, alkali-resistant, and impact-resistant, making it suitable for outdoor and harsh environments. With excellent anti-metal performance, it offers exceptional value for money. Its special design enables long-range read performance. It complies with the EPC C1G2 (ISO 18000-6C) standard, operates at a frequency of 840 MHz to 960 MHz, and is suitable for global use.
Features
Crystal Resin Coating, Stylish Appearance
The product is made of PVC material with a surface layer of crystal resin coating. The crystal resin coating consists of high-purity epoxy resin, a curing agent, and other modifiers. The cured product is water-resistant, resistant to chemical corrosion, and crystal-clear. In addition to providing excellent protection for the surface of craft items, this crystal resin coating enhances surface gloss and brightness, further improving the decorative effect.
Flexible Surface Resin
Flexible Crystal Resin: This two-component liquid features high transparency, no shrinkage, no warping, excellent flexibility, superior flexural strength, resistance to cracking, and resistance to yellowing. It is suitable for surface decoration of electronic and electrical products such as logos and nameplates. After application, the card retains a certain degree of flexibility and can be bent to some extent.
Bubble-free and transparent, with excellent three-dimensional effect
Waterproof and moisture-resistant, resistant to chemical corrosion from acids and alkalis, and extremely durable, making it suitable for outdoor inspections
Customization
Any shape or pattern can be customized, including various cartoon shapes, with vibrant colors and lifelike imagery. Available processes include offset printing, screen printing, pad printing, inkjet printing, and flat printing.
Application
Fixed-point personnel inspections, gas cylinder identification, equipment management
